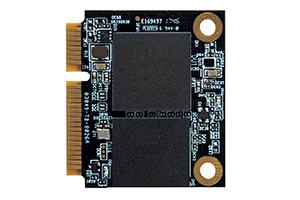

Mini mSATA E231

  • SATA III, compliant with JEDEC MO-300B
  • MLC eMMC, up to 256GB capacity
  • Extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Request a Quote

Mini mSATA E231 is an ultra-compact half-size mSATA SATA III 6Gb/s MLC eMMC flash module. It is designed as a space-constraint and low power SSD to spinning hard disk drives in embedded applications.

Interface SATA III
Form Factor Mini mSATA (MO300B)
Flash Type MLC eMMC
Max. Channel 2
Density 128GB~256GB
Sequential R/W (MB/sec, max.) 133/133
Operating Temperature -25°C~+85°C/-40°C~+85°C
Max. Power Consumption 1.8W (3.3Vx550mA)
Dimensions (LxWxH/mm) 26.8x29.85x3.5
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor
ATA Security
Vibration 20G (7~2K Hz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
