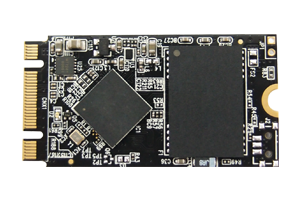

M.2 2242 SATA ET30


  • M.2 (NGFF) standard of 22mm wide, 42mm long
  • Micron 3D TLC, 10K P/E Cycles
  • 560/515 MB/s of Read/Write speeds
  • DRAM-less, up to 512GB capacity
  • Commercial/extended/wide temp. solutions
  • Built-in LDPC, RAID engine data protection
  • Built-in OCP/OVP
  • mSMART storage device monitoring
Request a Quote

MEMXPRO mSATA ET30 is budget friendly SATA III 6Gb/s embedded flash storage with 10K P/E cycle 3D TLC NAND to boost system performance and enhances the endurance compared to 2D NAND SSDs.  The ET30 series features LDPC ECC and RAID Engine technologies, ensuring data integrity and the safety of data transmission. Delivering exceptional read/write speed in a small footprint, the M.2 2242 SATA ET30 is the ideal storage companion or embedded computing boards, portable devices or automotive applications.

Interface SATA III
Form Factor M.2 SATA (2242)
Controller SMI SM2258XT
Flash Type 3D TLC(Original Micron B17A flash chip)
P/E Cycle 10000
Max. Channel 4
Density 64GB~512GB
Sequential R/W (MB/sec, max.) 560/515
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 1.82W (3.3Vx551mA)
Dimension (LxWxH/mm) 22x42x3.5
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor
DEVSLP Mode Optional
Vibration 20G (7~2KHz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
